Level Transmitters

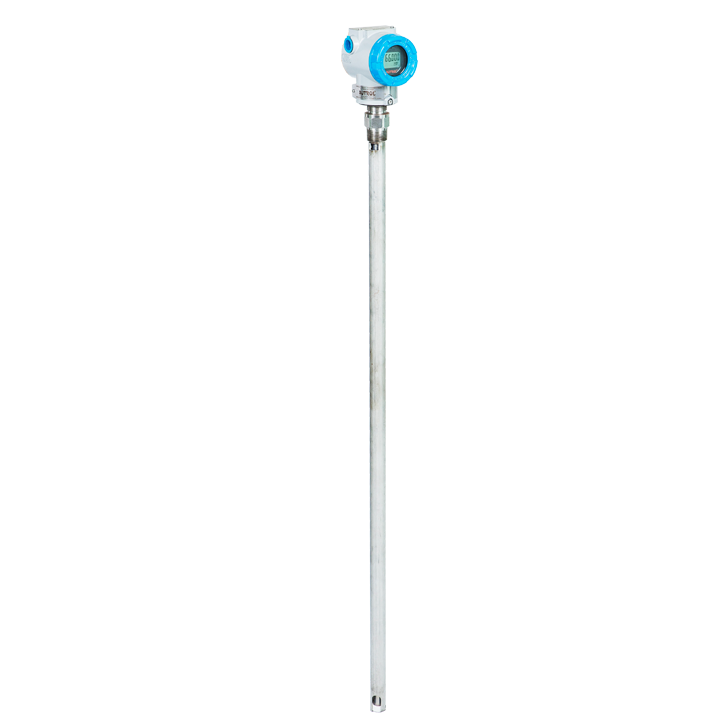

ALT6600
| Type | Contacted type Level Transmitter | |
| Certificate | Ex d, KCS, CE, Rohs, IP66 | |
| Feature | PVC coating | |
| Range | 0.15 to 4 meter | |
| Technology | Capacitance | |
| Applicable condition | Max 20 bar in Tank up to 100 deg C Sticky, Corrosive, no Foam, Not able to calibrate at the application | |
| Point Feature | Sticky(High Viscosity)/ Liquid/ Solid application |
| Brands |
|---|
| Model Name | ALT6600 | |
| Protocol | Digital Communication, HART | |
| Trim ability | Zero | |
| Power supply & Load Requirement | 250 to 550 ohm @ 24 Vdc, Loop Powered | |
| Falure Mode | Low ≤ 3.78 mA, High ≥ 21.1 mA | |
| External Buttons | Zero & Span 2 buttons for device configuration | |
| Process Temp. limit | -40 to 80℃ ( -104 to 176℉ ) | |
| Accuracy | ± 0.5% of Full Scale |
