APT3500-HS

APT3500-D-ST

Pressure Transmitter

APT3500

Type		Pressure: Differential(DPIT), Gauge/ Absolute(PIT), Level(LIT), High Static Pressure, Flow Pressure(FIT)
Certificate		SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X
Feature		4 to 20mA, HART, Loop PoweredAccuracy ± 0.04% of CS* 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode, Gold Plate
Application		Advanced performance. Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Marine & offshore, Vessel, Power, Chemical Plants and Refinary

Description
Specification

Type and Specifications

Model Type		APT3500-G Gauge Pressure
Sensor Range		Min -100 to Max 14,000 kPa
Calibrated Span		Min 0.0625 to Max 14,000 KPa
Max. Working Pressure		Max 25 Mpa / 3,625 psi
Advantage		High Gague pressure

Model Type		APT3500-A Absolute Pressure
Sensor Range		Min 0 to Max 2,500 kPa
Calibrated Span		Min 2.5 to Max 2,500 kPa
Max. Working Pressure		Max 2.5 MPa / 363 psi
Advantage		Absolute pressure

Model Type		APT3500-D Differential Pressure
Sensor Range		Min 0 to Max 14,000 KPa
Calibrated Span		Min 0.0625 to Max 14,000 kPa
Max. Working Pressure		Max 25 MPa / 3,625 psi
Advantage		Advanced performance on high pressure & high temp condition

Model Type		APT3500-HS High Static Pressure
Sensor Range		Min 0 to Max 2,100 kPa (Gauge Only 40,000 kPa)
Calibrated Span		Min 0.65 to Max 2,100 kPa (Gauge Only 40,000 kPa)
Max. Working Pressure		32 MPa / 4,641 psi (Gauge Only 75 Mpa / 10,878 psi)
Advantage		Max. up to 40 MPa stability with special connection

Model Type		APT3500- -BC Bottom Connection
Sensor Range		Min 0 to Max 14,000 KPa
Calibrated Span		Min 0.0625 Kpa to Max 14,000 KPa
Max. Working Pressure		Max 25 MPa / 3,625 psi
Advantage		Bottom direction process connection for flow & DPIT

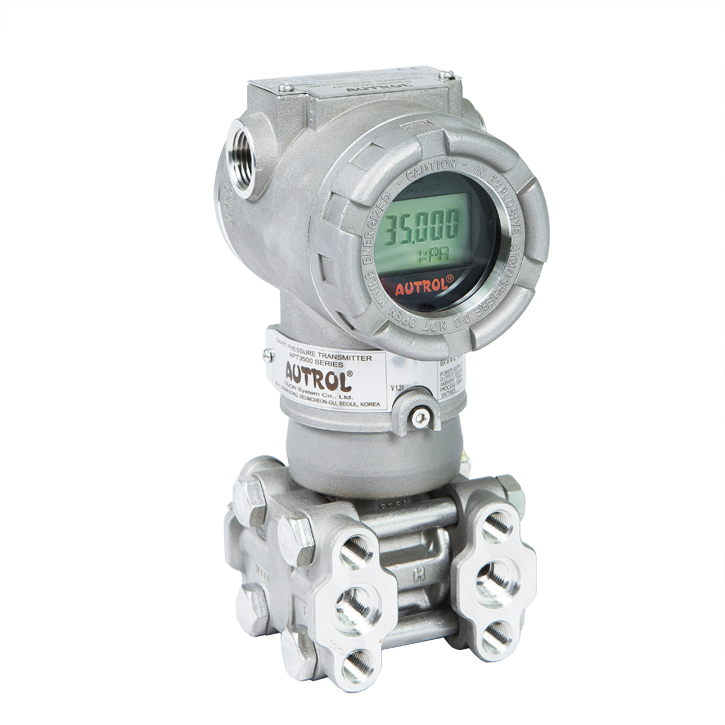

Model Type		APT3500-D-ST
Sensor Range		Min 0 to Max 14,000 KPa
Calibrated Span		Min 0.0625 Kpa to Max 14,000 KPa
Max. Working Pressure		Max 25 MPa / 3,625 psi
Advantage		Bottom direction process connection for flow & DPIT

Category: Pressure Transmitter

Description
Specification

Brands	Autrol

Model Name		APT3500
Protocol		Digital Communication, HART 7, Fieldbus Foundation
Trim ability		Zero, DAC, FULL
Power supply & Load Requirement		250 to 550 ohm @ 24 Vdc, Loop Powered
Falure Mode		Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons		Zero & Span 2 buttons for device configuration
Process Temp. limit		-40 to 120℃ ( -104 to 248℉ )
Range Abilitiy		100:1
Stability		0.125% URL for 60 months
