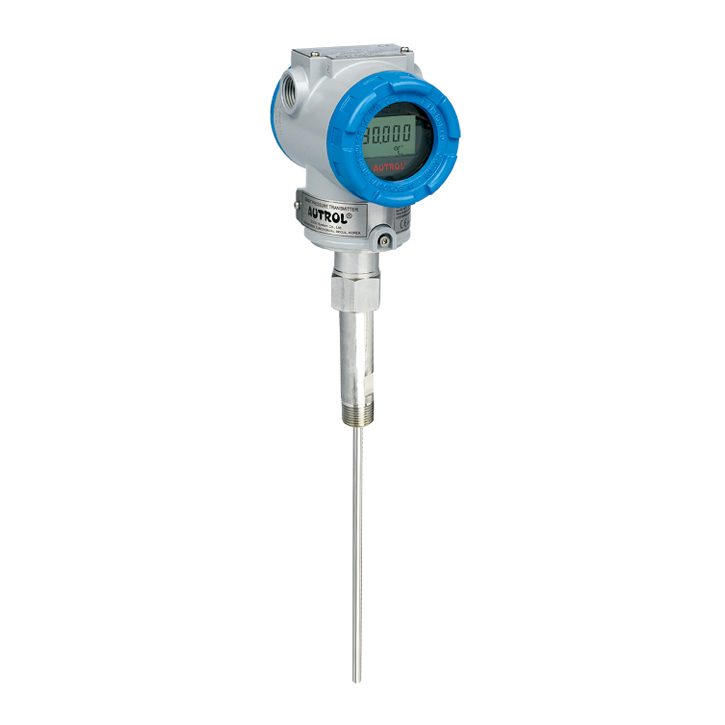

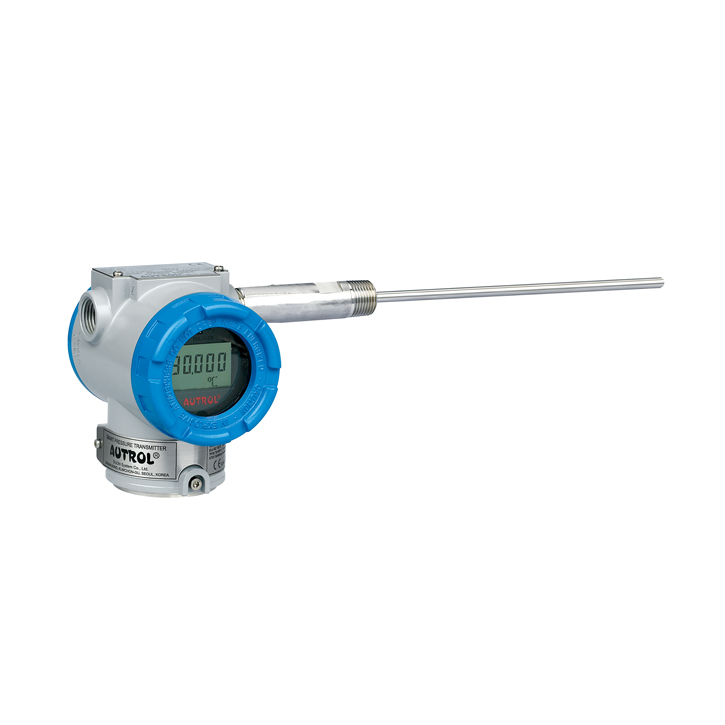

ATT2100

Autrol
TypeTemperature Transmitter(TIT), Field Mounting Type
CertificateEx d, FM, ATEX, TR CU(EAC), CE, KCs, IP66/67.
Feature4 to 20mA, HART, Loop PoweredDigital Accuracy: RTD ±0.17 ℃ , T/C ±0.77 ℃

3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode



InputRTD input: a=0.00385(KS, JIS, DIN, IEC), a=0.00391(US)Thermocouple input: KSC 1602-1982, JISC 1602-1981, ANSI MC96.1-1982

Millivolt, ohms

ApplicationPressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary

Contact

Yêu thích
So sánh
Brands

Model NameATT2100
ProtocolDigital Communication, HART 5, 7
Trim abilityZero, DAC
Power supply & Load Requirement250 to 550 ohm @ 24 Vdc, Loop Powered
Falure ModeLow ≤ 3.78 mA, High ≥ 21.1 mA
External ButtonsZero & Span 2 buttons for device configuration
Ambient Temp. limit-40 to 85℃ ( -104 to 185℉ )
StabilityRTD – 2 years (±0.12% of Reading or 0.15℃ whichever is greater),
T/C – 1 years (±0.12% of Reading or 0.15℃ whichever is greater)
