Pressure Transmitter

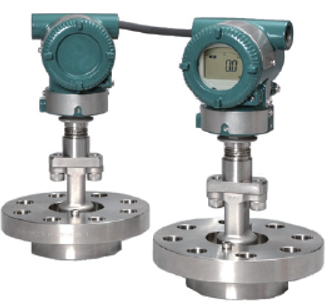

EJXC40A Digital Remote Sensor (DRS) Differential Pressure System
The EJXC40A Digital Remote Sensor (DRS) transmitter connects two pressure sensors, the master sensor (for high-pressure side) and remote sensor (for low-pressure side) with DRS dedicated communication cable to measure differential pressure. The DP is transmitted via a 4 to 20 mA analog signal.
EJXC40A DRS features include:
- ±0.056% System Accuracy*
- ±0.1% per 10 years Stability
- 250 ms Response Time
