Pressure Transmitter
Electronic Pressure Transducers and Transmitters
Get smart, precise digital control with less drift.

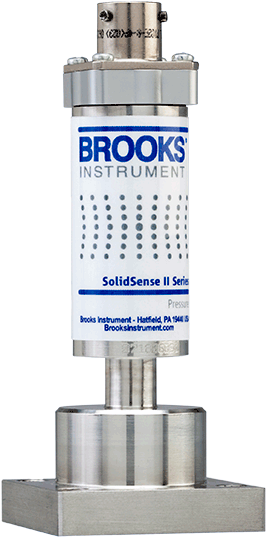

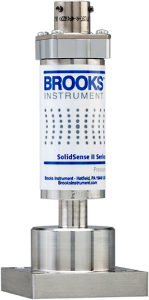

For intelligent pressure transmitter devices that deliver dependable pressure monitoring in ultra-high purity applications, count on smart electronic pressure transmitters and transducers from Brooks Instrument. Wetted surface materials are selected for high corrosion resistance suitable for demanding environments. Our innovative diaphragm manufacturing process ensures less drift and lack of zero stability commonly associated with competitive pressure transducers and transmitters. And with a wide transducer pressure measurement range combined with an array of I/O options, you can cover a variety of operating conditions with a single device type to minimize inventory and operator confusion.
KEY APPLICATIONS
- Thin-film processes
- Chemical and petrochemical research
- Laboratory and analytical projects
- Fuel cells
- Life sciences
Select the electronic pressure transducer or transmitter device that best serves your process requirements.
PRODUCTS
 | |
| Product Type | Pressure Transducers |
| Differentiator | Ultra-High Purity |
| Pressure Range | -15 psi – 3000 psi |
| Materials of Construction | Housing: Stainless steel, polymer plastics |
| Analog Communication | 0-5 Vdc, 0-10 Vdc, 0.2-5.2 Vdc, 2-10 Vdc, 4-20 mA |
| Certifications/Approvals | EMC: Compliant to EU Directive 2004/108/EC FM Approved: Non-Incendive for use in Class I, Div II Groups A, B, C and D Hazardous Applications |
| Brands |
|---|
| Model Name | APT3500 | |
| Protocol | Digital Communication, HART 7, Fieldbus Foundation | |
| Trim ability | Zero, DAC, FULL | |
| Power supply & Load Requirement | 250 to 550 ohm @ 24 Vdc, Loop Powered | |
| Falure Mode | Low ≤ 3.78 mA, High ≥ 21.1 mA | |
| External Buttons | Zero & Span 2 buttons for device configuration | |
| Process Temp. limit | -40 to 120℃ ( -104 to 248℉ ) | |
| Range Abilitiy | 100:1 | |
| Stability | 0.125% URL for 60 months |
