Servo Valve

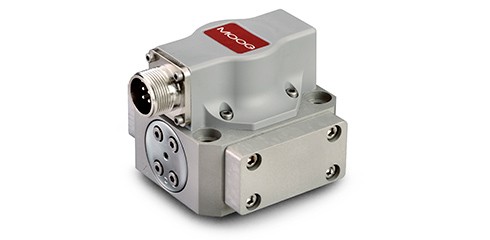

G761 and 761 Series Servo Valves
- Rated Flow: 0.5 to 75 l/min (0.125 to 20 gpm)
- Rated Pressure: 310 or 350 bar
(4,500 or 5,000 psi) - Rated Signal: 8 to 200 mA
- Port Pattern: Size 04 (ISO 10372-04-04-0-92)
- 2-stage flow control Mechanical Feedback (MFB) Servo Valve
- Nozzle-flapper pilot stage technology provides high dynamics, high resolution and low hysteresis
- High spool driving forces and rugged design ensures long-life operation
- Compact design enables applications with limited footprint
- Instrinsically-safe versions (G761K and 761K) available for applications requring products certified for use in potentially hazardous environments
| Specifications | |
|---|---|
| Hydraulic Data | |
| Rated Flow* | 0.5 to 75 l/min (0.125 to 20 gpm) |
| Standard Configurations | 4, 10, 19, 38, 63 l/min (1, 2.5, 5, 10, 16.5 gpm) |
| Max. Operating Pressure | 310 or 350 bar (4,500 or 5,000 psi) |
| Performance Data | |
| 100% Step Response** | 5 to 16 ms |
| Frequency Response*** | 120 to 230 Hz |
| Electrical Data | |
| Rated Signal**** | 8 to 200 mA |
| Standard Configurations | 15, 40, 200 mA |
| Physical Data | |
| Size (Mounting Pattern) | Size 04 (ISO 10372-04-04-0-92) |
| Weight | 1.1 kg (2.4 lbs) |
| Additional Options | High Null Bias, Magnetic Null Adjust, Vented Motor Cap, Special BSA Fit, Parallel Internal Wiring, Reverse Polarity, Very High Response Contact Industrial Application Engineering for additional Flow, Pressure and other options |
