Geared Motor

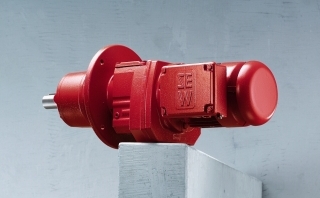

Helical Gearmotor RM Series
RM gearmotors with extended output bearing hub are a special type of helical gearmotor. They were designed especially for agitating applications and allow for high overhung and axial loads and bending moments. The remaining data corresponds to that of standard helical gearmotors.
|
Technical data
|
||
|
Gear unit reduction ratio
|
[i]
|
4.29 to 289.74
|
|
Multi-stage gear unit reduction ratio
|
[i]
|
134 to 27001
|
|
Output torque
|
[Nm] ([in-lb])
|
270 to 18000 (2380 to 159300)
|
|
Motor power range
|
[kW] ([hp])
|
0.12 to 160 (0.16 to 215)
|
|
Multi-stage
|
Size
|
|||||||
|
77
|
87
|
97
|
107
|
137
|
147
|
167
|
||
|
R..
|
Foot-mounted
|
R77
|
R87
|
R97
|
R107
|
R137
|
R147
|
R167
|
|
R..F
|
Foot-mounted and flange-mounted
|
R77F
|
R87F
|
R97F
|
R107F
|
R137F
|
R147F
|
R167F
|
|
RF..
|
B5 flange-mounted
|
RF77
|
RF87
|
RF97
|
RF107
|
RF137
|
RF147
|
RF167
|
|
RZ..
|
B14 flange-mounted
|
RZ77
|
RZ87
|
–
|
–
|
–
|
–
|
–
|
|
RM..
|
Flange-mounted with extended bearing hub
|
RM77
|
RM87
|
RM97
|
RM107
|
RM137
|
RM147
|
RM167
|
