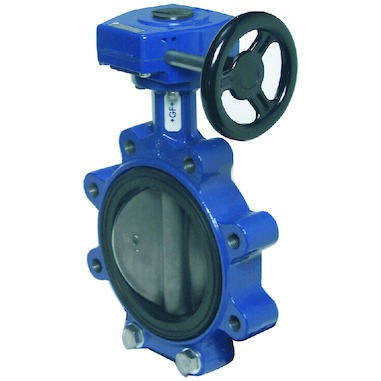

Metal – butterfly valve type 038G Reduction gear with handwheel Disc: stainless steel

Model:

• Lug Style
• Body GGG40 (A 395 / A395 M-99, EN-JIS 1020 EN1563) Rilsan® coating
• Body from DN350 Epoxy® coating
• Installation length: EN 558 row 20
• Interface according to DIN EN ISO 5211
• Pressure range: 16 bar (DN 50-300); 10 bar (DN 350-600)
• Single-piece axis with square profile, up to DN 600 mm 2-pieces axis
• Multiple flange connection: DIN PN 6/10/16; other standard e.g. ANSI/ASME B16.5 Class 150 on request

Option:

• Electric and pneumatic actuator on request
• Other liner material on request
