Pressure Transmitter

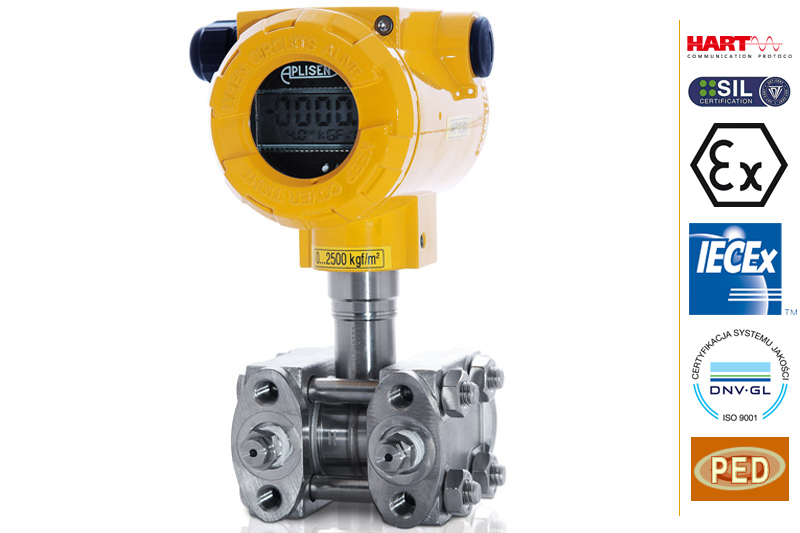

Smart differential pressure transmitter APR-2000 ALW
- 4…20 mA, 0…20 mA or 0…5 mA output signal + HART protocol
- Display with backlight
- SIL 2 certificate
- Intrinsic safety certificate (ATEX, IECEx)
- Explosion proof certificate (ATEX, IECEx)
- PED Conformity (97/23/EC)
- Programmable zero range, shift, characteristic and damping ratio with local panel keys
- Static pressure limit up to 420bar
- Accuracy 0,075% (0,05% on request)
- Marine certificate – DNV, BV
- Gold plated diaphragms
- Wetted parts material Hastelloy C276
| Brands |
|---|
Related products
- Pressure Transmitter
Absolute and gauge pressure Cerabar PMC21
Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids
The Cerabar PMC21 is a very compact pressure transmitter. It features a capacitive, oil-free ceramic sensor and is able to measure absolute or gauge pressure from 100mbar up to 40bar. It is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP68 and highly abrasion resistant Ceraphire membrane as well as high quality 316L housing. It can be used in most areas as it offers various certifications like hazardous area or marine certificates.
SKU: n/a - Pressure Transmitter
Electronic differential pressure Deltabar FMD72
Electronic differential pressure system utilizing two metal sensor modules and one transmitter
The electronic dp Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.
SKU: n/a - Pressure Transmitter
Absolute and gauge pressure Cerabar PMC71
Digital pressure transmitter with oil-free ceramic sensor for measurement in gases or liquids
The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
SKU: n/a - Pressure Transmitter
Pressure transmitter PCE-28 PCE-28/EXD
- Any range from 0…25 mbar up to 0…1000 bar
- 4 ÷ 20 mA two-wire or 0 ÷ 10 V output
- Intrinsic safety certificate (ATEX, IECEx)
- Explosion proof certificate (ATEX, IECEx)
- Low-voltage version with ATEX and IECEx certificate (model PC-29A, PC-29B)
- Marine certificate – DNV, BV
- Communication protocol Modbus RTU
- Gold plated diaphragm
- SIL 1 certificate
- Version with local display
SKU: n/a
