Pressure Transmitter
APT3100
| Type | Pressure: Differential(DPIT), Gauge/ Absolute(PIT), Level(LIT), High Static Pressure, Flow Pressure(FIT) | |
| Certificate | SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X | |
| Feature | 4 to 20mA, HART, Loop PoweredAccuracy ± 0.075% (option ± 0.04%) of CS* 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
| |
| Application | Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary |
Type and Specifications

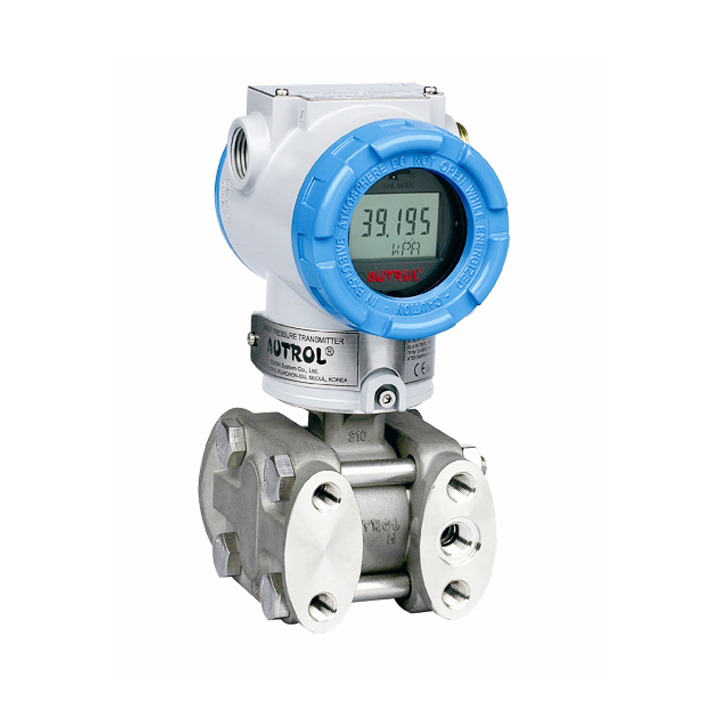

| Model Type | APT3100-G Guage pressure | |
| Sensor Range | Min -100 to Max 41,370 kPa | |
| Calibrated Span | Min 0.075 to Max 41,370 kPa | |
| Max. Working Pressure | Max 75 MPa / 10,878 psi | |
| Advantage | Low pressure gauge measurement |
| Model Type | APT3100-A Absolute pressure | |
| Sensor Range | Min 0 to Max 2,500 kPa(A) | |
| Calibrated Span | Min 2.5 to Max 2,500 kPa(A) | |
| Max. Working Pressure | Max 5.25 MPa / 761 psi | |
| Advantage | Absolute pressure measurement |

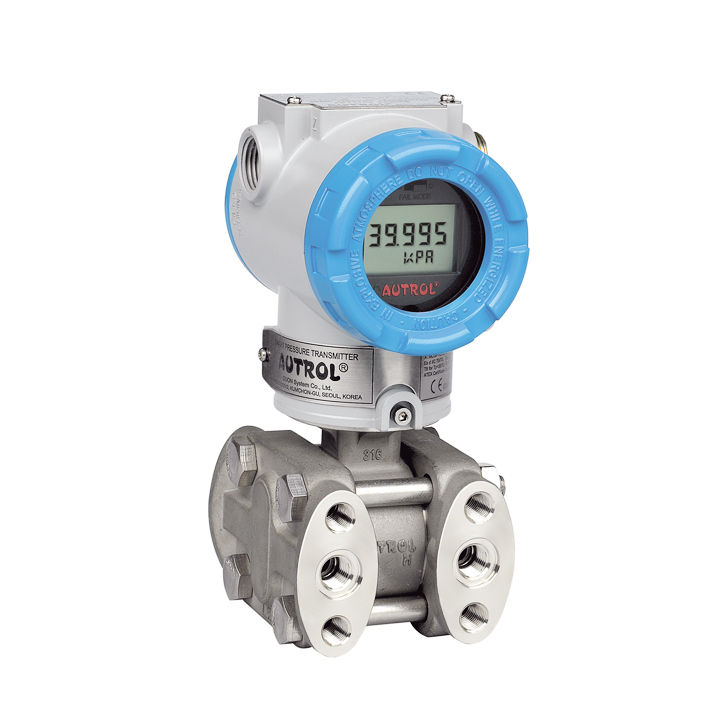

| Model Type | APT3100-D Differential pressure | |
| Sensor Range | Min 0 to Max 6,895 kPa | |
| Calibrated Span | Min 0.075 to Max 6,895 kPa | |
| Max. Working Pressure | 13.79 MPa / 2,000 psi | |
| Advantage | Differential, Flow & Level measurement |
| Model Type | APT3100-H High Static pressure | |
| Sensor Range | Min 0 to Max 2,068 kPa | |
| Calibrated Span | Min 0.373 kPa to Max 2,068 kPa | |
| Max. Working Pressure | 31.02 MPa / 4,525 psi | |
| Advantage | High static pressure measurement |

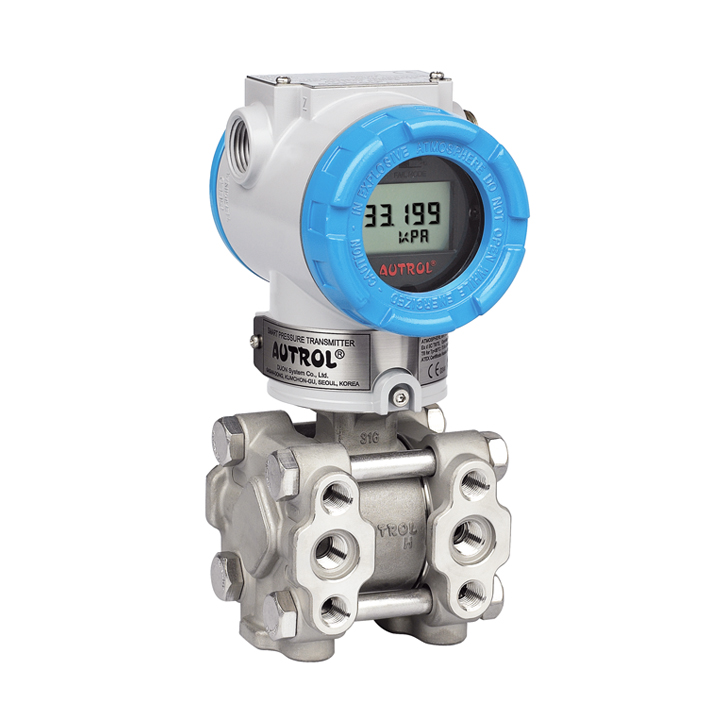

| Model Type | APT3100- / -MP Multi-planar | |
| Sensor Range | Min 0 to Max 6,895 KPa | |
| Calibrated Span | Min 0.075 to Max 6,895 KPa | |
| Max. Working Pressure | 31.02 MPa / 4,525 psi (75 Mpa for GP) | |
| Advantage | 3 process connections including bottom direction |
| Model Type | APT3100-F | |
| Sensor Range | Min 0 to Max 6,895 KPa | |
| Calibrated Span | Min 0.075 to Max 6,895 KPa | |
| Max. Working Pressure | 13.79 MPa / 2000 psi | |
| Advantage | Flow Totalizing, Additional 2 wires for Pulse output to relay/counter |

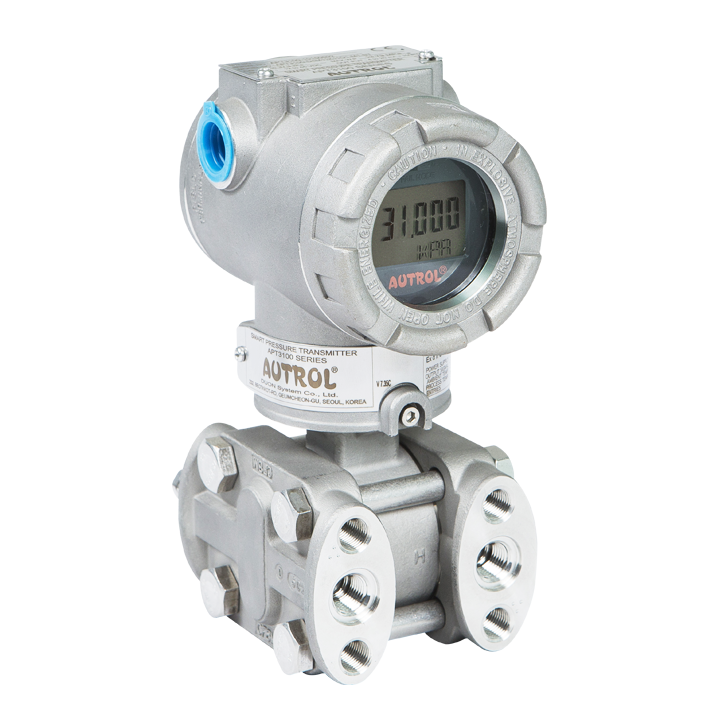

| Model Type | APT3100-D-ST | |
| Sensor Range | Min 0 to Max 6,895 KPa | |
| Calibrated Span | Min 0.075 to Max 6,895 KPa | |
| Max. Working Pressure | 13.79 MPa / 2000 psi | |
| Advantage | Flow Totalizing, Additional 2 wires for Pulse output to relay/counter |
| Brands |
|---|
| Model Name | APT3100 | |
| Protocol | 4 to 20mA + Digital Communication, HART 5 | |
| Trim ability | Zero, DAC, FULL | |
| Power supply & Load Requirement | 250 to 550 ohm @ 24 Vdc, Loop Powered | |
| Falure Mode | Low ≤ 3.78 mA, High ≥ 21.1 mA | |
| External Buttons | Zero & Span 2 buttons for device configuration | |
| Process Temp. limit | -40 to 120℃ ( -104 to 248℉ ) | |
| Range Abilitiy | 100:1 | |
| Stability | ±0.125% URL for 36 months |
